Product Details

Output & Efficiency

• 750 W continuous power.
• 80 PLUS Gold certification with about 88.66% efficiency at full load.

Form Factor & Design

• Compact dimensions: 140 × 150 × 86 mm, ideal for fitting into most ATX cases.
• Fully modular design with embossed 16 AWG cables for clean cable management.

Standards & Connectivity

• Compatible with ATX 3.1 and PCIe 5.1, including the 12VHPWR connector for powering modern GPUs.

Cooling & Noise

• Equipped with a 120 mm Fluid Dynamic Bearing (FDB) fan that supports 0 RPM semi‑passive mode—silent under light to moderate load.

Internal Build Quality

• Uses Japanese electrolytic capacitors rated at 105 °C.
• Follows an LLC + DC‑DC converter architecture for stable and efficient power delivery.

Protection & Lifespan

• Full suite of protective features: UVP, OVP, OPP, SCP, OCP, OTP.
• MTBF of 100,000 hours.
• Backed by a 10-year warranty.

Global Certifications

• Compliant with CE, FCC, RoHS, cTUVus, IEC, EAC, CCC, and more.

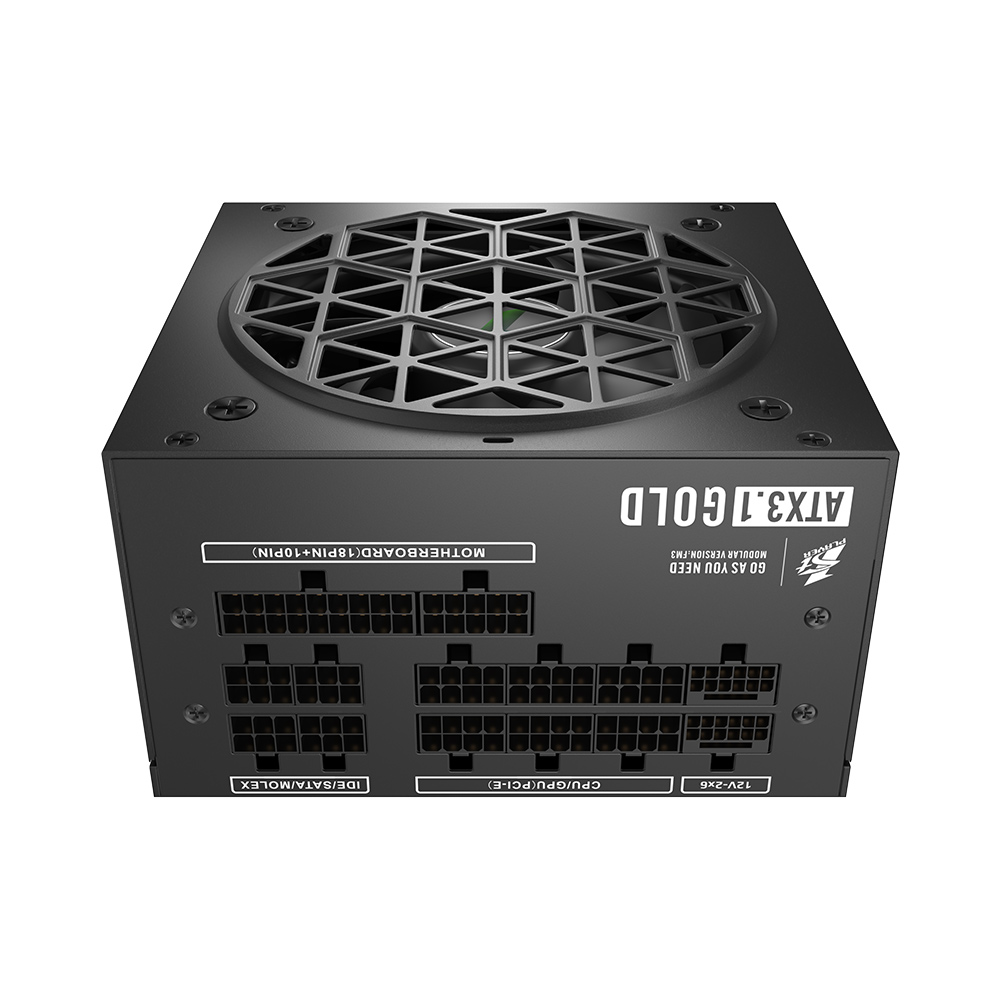

Connectivity Overview

• Includes +12 V HPWR connector, multiple PCIe, EPS, SATA, and Molex cables.
