Key feature:
800 W power output, ideal for gaming and high-performance setups 80 PLUS bronze certified, 87% effeciency at typical load Silent 120mm hydraulic bearing fan ensures quiet operation and effective cooling Flat black cables simplify cable management and improve airflow Comprehensive protection: UVP, OVP, OPP, SCP and lightning protection5 years Warranty
Product Details & Specifications

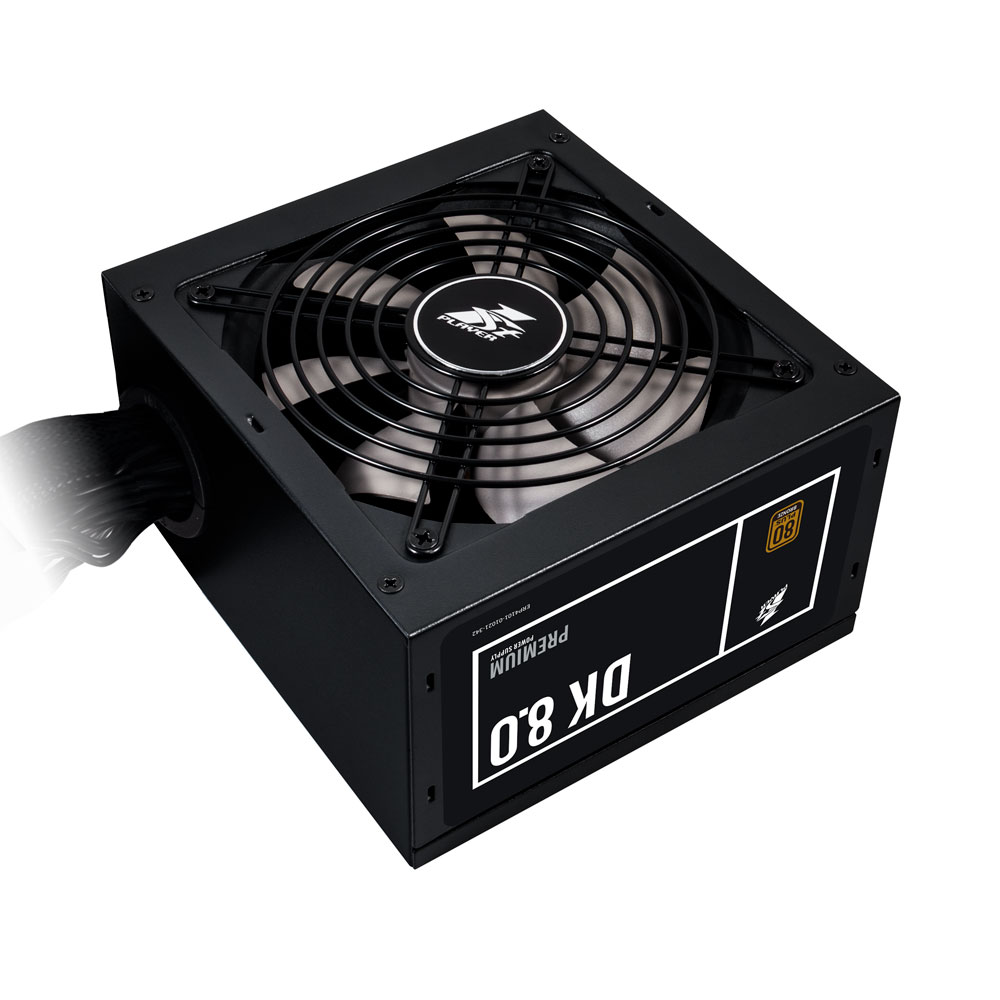

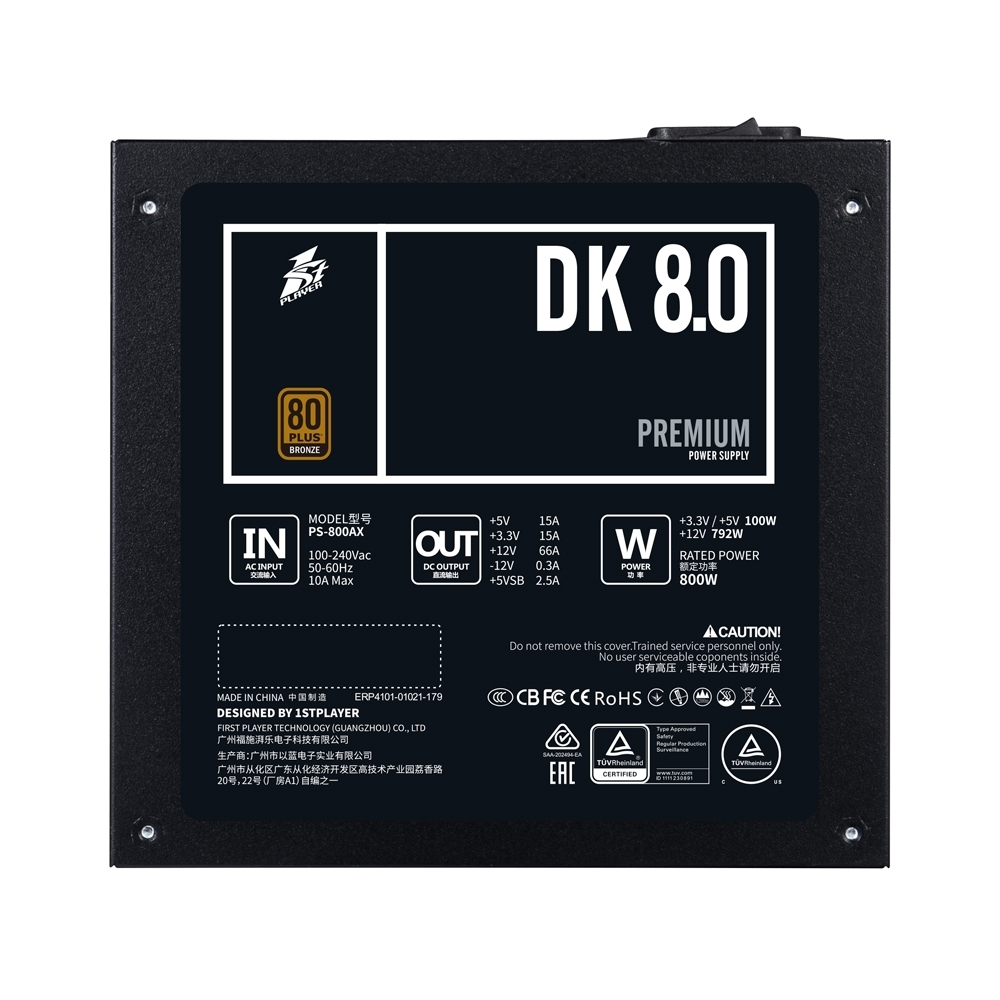

Brand/Model: 1ST Player, DK Premium 8.0 series, model PS‑800AX
Power Output: 800 W total capacity
Efficiency: 80 PLUS Bronze certified, up to ~87% at typical load
Cooling: 120 mm hydraulic bearing fan offering quieter and longer-lasting performance
Protection Features: UVP (Under Voltage), OVP (Over Voltage), OPP (Over Power), SCP (Short Circuit), and lightning protection
Build Quality & Components:
Double‑forward circuit topology with active Power Factor Correction (PFC) for improved stability
Japanese TK (Toshin Kogyo) main capacitor mentioned in some listings
Connectors (according to some international sources):
1×24-pin ATX
1×8-pin (4+4) EPS/CPU
6×SATA
3×Molex
4×PCIe 6+2-pin
Physical Dimensions & Build: Approx. 140 × 150 × 86 mm; weighs around 2.2 kg
Certifications & Safeties: CE, FCC, RoHS, C-Tick, CCC, cTUVus, IEC, EAC; MTBF around 100,000 hours
