Product Details

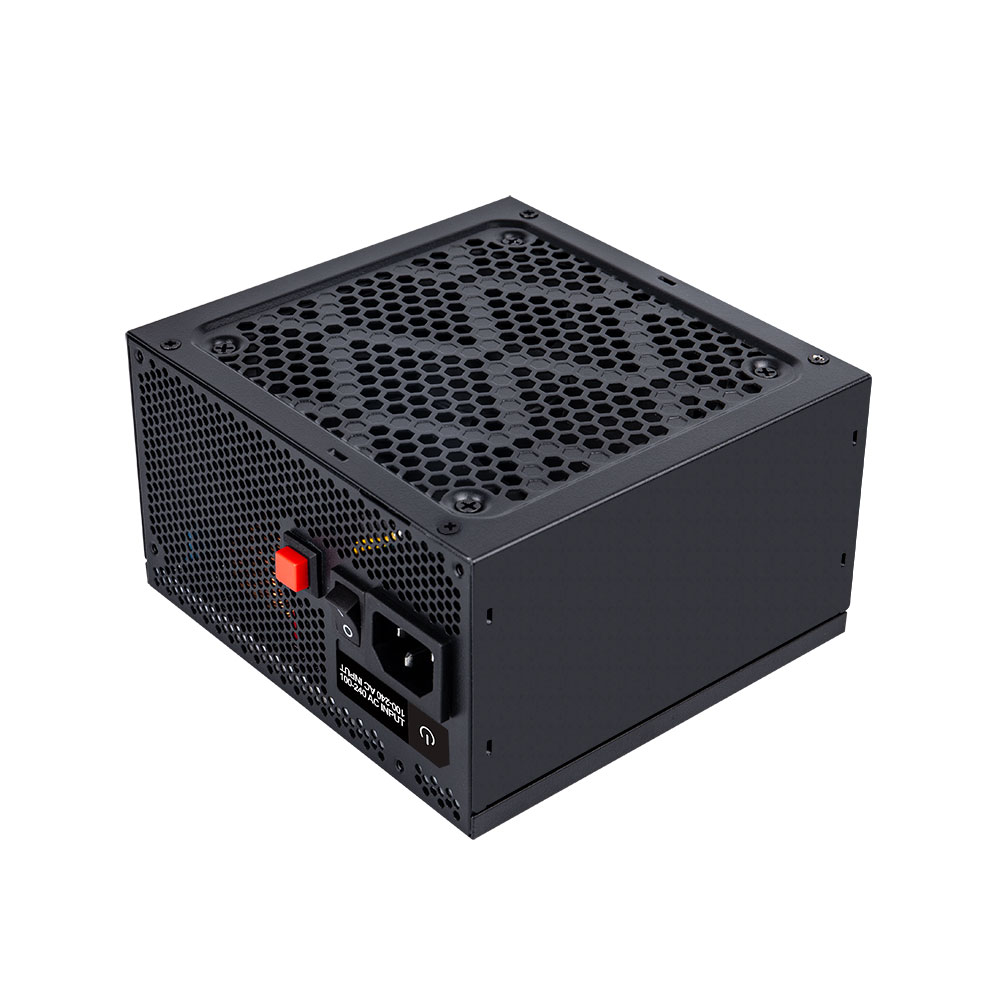

Here’s a detailed breakdown of the 1st Player ARMOUR PS‑750AR (AR GOLD), a 750 W, non-modular, 80 PLUS Gold PSU:

Key Specifications & Features

• Model: ARMOUR / AR‑series PS‑750AR

• Wattage: 750 W (continuous), approx. 690 W real power output

• Certification: 80 PLUS Gold, ~92.4% efficiency at typical load

• Input Range: 100–240 VAC, 10 A max, 50–60 Hz

• Cooling: 120 mm hydraulic bearing fan; includes smart start/stop (0 RPM) mode

• Protection Suite: UVP, OVP, OPP, SCP, Lightning Protection, and often also power-off protection

• Internal Design: Uses LLC + DC‑DC topology, smart 0 RPM fan control, and a robust single +12 V rail (capable of delivering ~62 A)

• Regulatory & Safety Certifications: CE, FCC, RoHS, CCC, EAC, cTUVus, IEC, among others

• Physical Dimensions: 140 × 150 × 86 mm; ~2 kg net, ~2.49 kg gross

• MTBF (Mean Time Between Failures): Approx. 100,000 hours
