Product Details

Design & Compatibility

• Supported Motherboards: Full-size E‑ATX, ATX, Micro‑ATX, and Mini‑ITX

• Materials: Constructed from 0.5 mm SPCC steel with a 0.6 mm thick structure. The left panel is tempered glass, while the front is durable plastic

Size & Build

• Structure Dimensions: ~430 × 230 × 470 mm

• Product Dimensions (with extras like feet and front panel): ~470 × 230 × 490 mm

• Weight: Net ~7.05 kg; Gross ~8.45 kg

Cooling & Airflow

• Fan Support (up to 11 fans):

  1. Front: 3 × 120 mm or 3 × 140 mm

  2. Side: 2 × 120 mm

  3. Top: 3 × 120 mm or 2 × 140 mm

  4. Rear: 1 × 120 mm or 1 × 140 mm

  5. Bottom: 2 × 120 mm

• Liquid Cooling: Compatible with 240 mm or 360 mm radiators in both the front and top positions

• Ventilation: Designed for generous airflow, with pre-installed ARGB front fans available at some retailers

Hardware Support

• CPU Cooler Height: Up to 170 mm

• GPU Compatibility: Supports graphics cards up to 400 mm in length when mounted vertically; maximum GPU width around 160 mm

• Storage Options:

  1. Option A: 2 × 3.5″ HDD + 2 × 2.5″ SSD

  2. Option B: 1 × 3.5″ HDD + 3 × 2.5″ SSD

• PCI Slots: 7 available for expansion

• PSU Support: Bottom-mounted ATX PSU (max length 200 mm)

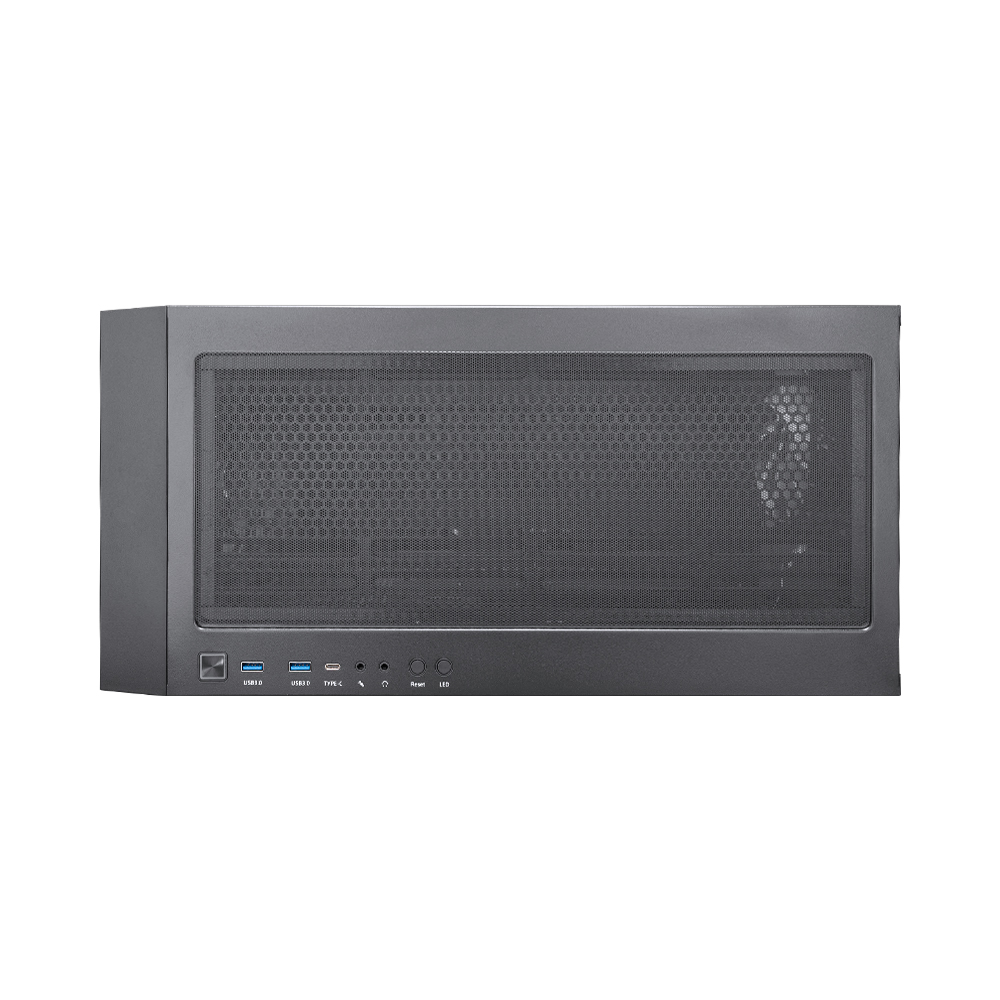

Front I/O

• 2 × USB 3.0
• 1 × USB-C
• HD Audio jacks

Why Choose the FD8?

• High-Thermal Performance: Exceptional support for up to 11 fans and large radiator options—great for high-end cooling setups.

• Build-Flexibility: E-ATX support, tall CPU coolers, and extra-long GPUs make it suitable for powerful builds.

• Future-Ready I/O: Featuring USB-C alongside USB 3.0, it’s ready for modern peripherals.

• ARGB Possible: Many versions include front ARGB fans for added visual flair.
