Key feature:
Real-time system usage and temperature display 9-blade fan for low noise operation High-density fin radiator for effecient heat dissipation aRGB lighting that synchronizes with the motherboard Copper endothermic cold plate for optimal heat absorption Compatible with Intel LGA 1851 / 1700 / 1200 / 115x and AMD AM5 / AM4 socketsColor variants: Black, White

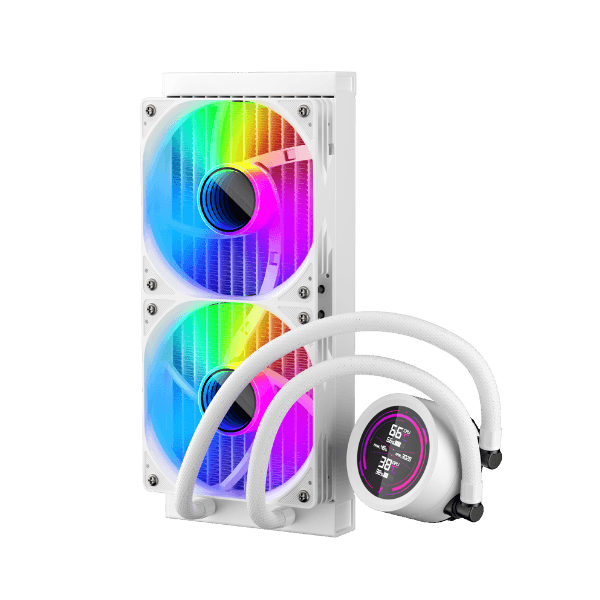

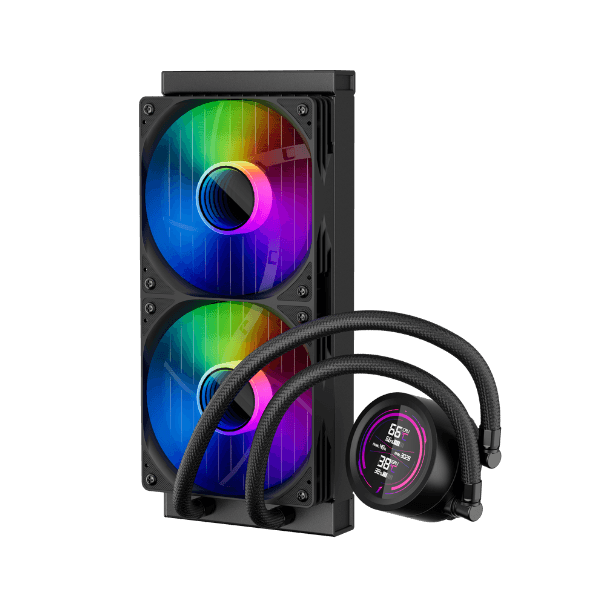

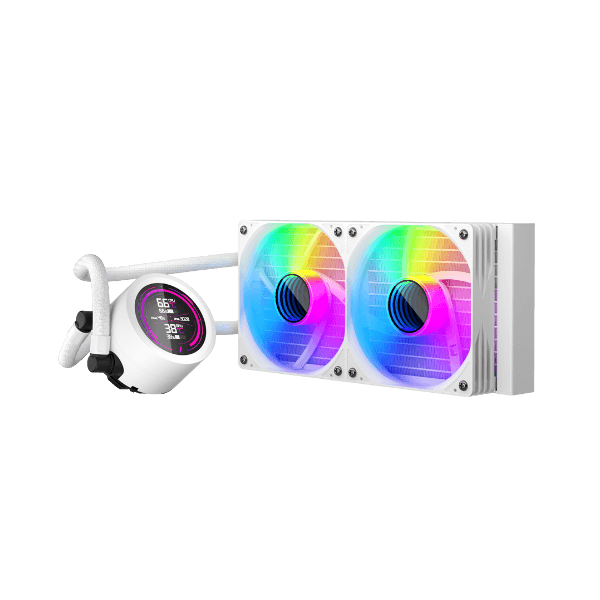

The TS4 240 is a 240 mm ARGB all-in-one (AIO) liquid cooler targeting performance builds with modern aesthetics. Here’s what it offers:
Core Specifications (TS4 240)
Cooling Capacity (TDP): Rated for 250 W
Radiator: Aluminum, measuring 277 × 120 × 27 mm
Tube Length: 330 mm, offering flexibility for mounting locations
Weight: Net weight: 14.1 kg, gross weight: 15.7 kg
Warranty: 3 years
Pump Details:
Size: 85 × 70 × 47.5 mm
Speed Range: 800 ± 200 to 3000 RPM (±10%)
Noise Level: Approximately 18 dB(A)
Connector: 4‑pin PWM, 12 V, ≤ 0.35 A, ≤ 4.2 W
Fans:
Number: 2 × 120 mm hydraulic-bearing fans
Speed Range: 800–1800 RPM ±10%
Airflow: Up to 77 CFM
Static Pressure: Approximately 2.2 mm H₂O
Noise Level: ≤ 36 dB(A)
Power Draw: ~0.65 A, 7.8 W at 12 V
Lighting: Addressable RGB (5 V) via 3‑pin headers
CPU Socket Compatibility:
Intel: LGA 115x, 1200, 1700, 1851
AMD: AM4, AM5
