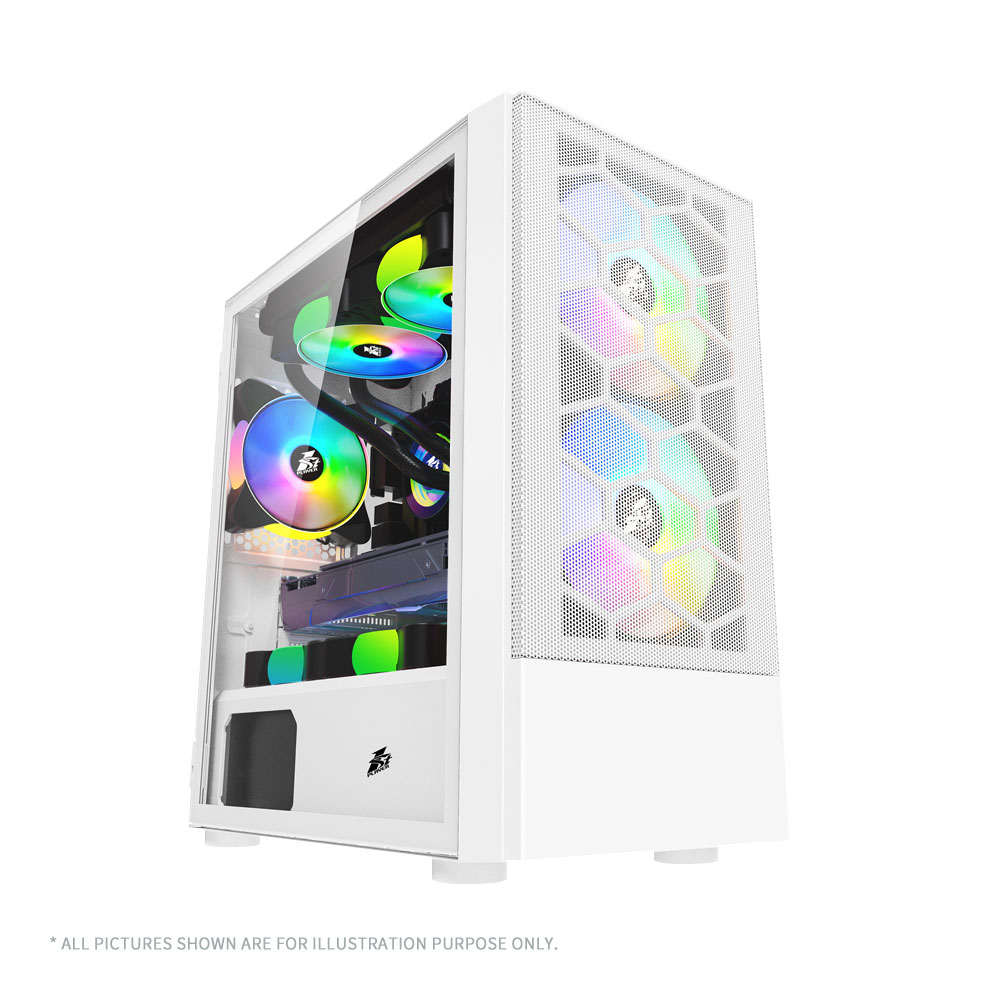

Product Details

Core Specifications

• Form Factors Supported: M‑ATX and Mini‑ITX motherboards
• Materials: 0.5 mm SPCC steel with tempered glass on both left and right sides; metal mesh front panel for enhanced ventilation
• Dimensions:
  1. Structural: 335 × 210 × 404 mm
  2. Product: 375 × 210 × 423 mm
• Weight: Net ~4.5 kg; Gross ~4.85 kg

Cooling & Component Support

• Fan Support (Up to 8 fans):
  1. Front: 3 × 120 mm or 2 × 140 mm
  2. Rear: 1 × 120 mm
  3. Top: 2 × 120 mm
  4. Bottom: 2 × 120 mm
• Liquid Cooling: Supports a 240 mm radiator at the top
• CPU Cooler Height Clearance: Up to 160 mm
• GPU Length Clearance: Up to 330 mm

Storage & Expansion

• Drive Bay Options:
  1. Option A: 2 × 3.5″ HDD + 2 × 2.5″ SSD
  2. Option B: 1 × 3.5″ HDD + 3 × 2.5″ SSD
• Expansion Slots: 4 horizontal PCI slots

Ports & Connectivity

• Front I/O:
  1. USB 3.0 × 1
  2. USB 2.0 × 2
  3. HD Audio jack
• Power Supply: Bottom-mounted ATX; PSU not included

Why Choose the X4‑M?

• Compact but spacious: Adequate room for mid-tier components with solid cooling support.
• Stylish and functional: Double tempered glass, mesh front, and magnetic dust filters offer aesthetics and practicality.
• Expandable & flexible: Plenty of fan mounts, radiator support, and storage options for a compact case.
