Product Details

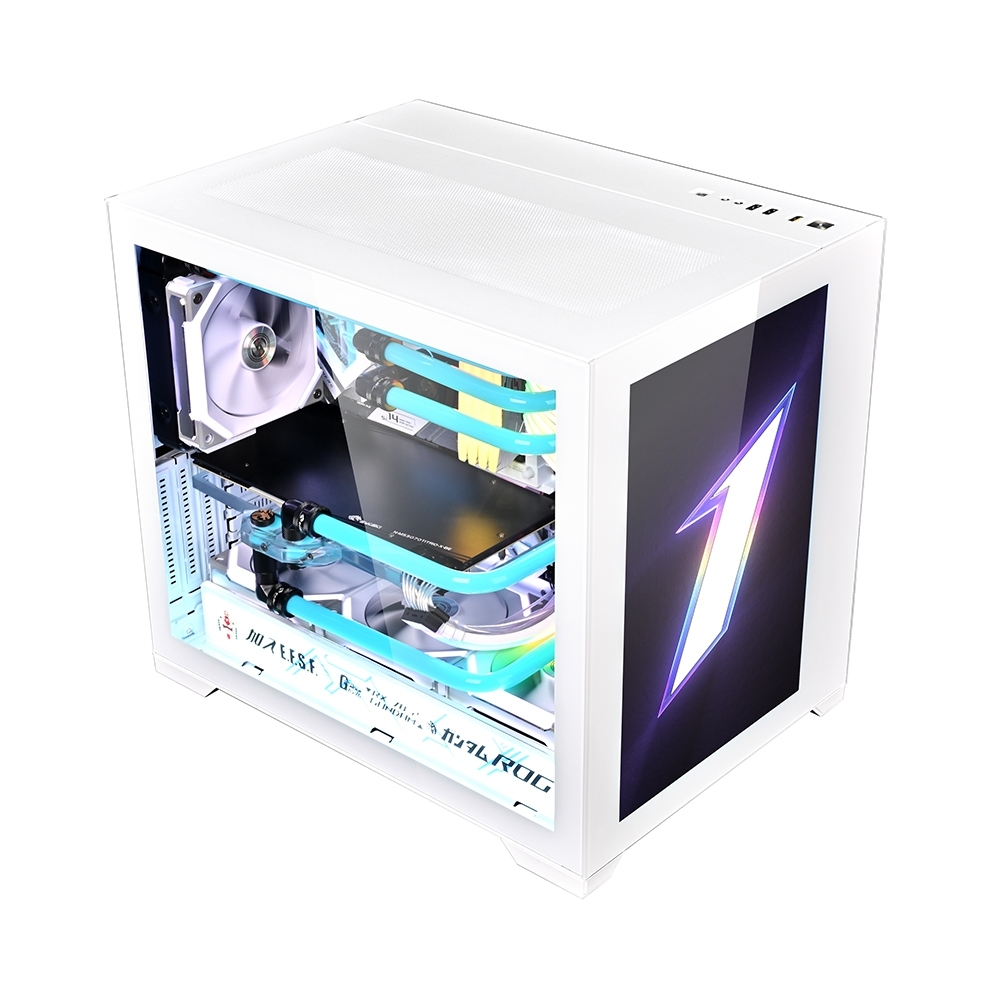

Design & Build

• Form Factor: Supports ATX and Micro‑ATX motherboards.

• Chassis Build:

  1. Made from durable SPCC steel (0.8 mm thickness).

  2. Tempered glass side panel and a prominent “Emotion View” tempered glass front.

Dimensions & Weight:

• Structure (L × W × H): 425 × 308 × 362 mm

• Product: 425 × 308 × 380 mm

• Net Weight: ~7.9 kg; Gross Weight: ~9.4 kg

Cooling & Airflow

Support for up to 9 fans:

• Front: 2 × 120 mm or 2 × 140 mm
• Top: 3 × 120 mm or 2 × 140 mm
• Rear: 1 × 120 mm
• Bottom: 3 × 120 mm or 2 × 140 mm

Radiator support (liquid cooling):

• Top and bottom: up to 360 mm
• Front: 240 or 280 mm

Hardware Compatibility:

• CPU Cooler Height: up to 185 mm
• GPU Length: up to 400 mm (vertically mounted)

Drive Bays & Expansion:

• HDD Bays: 2 × 3.5″
• SSD Bays: 1 × 2.5″ (some sources mention 2 × 2.5″)
• PCI Slots: 7 standard + 3 vertical, useful for vertical GPU mounting

I/O Connectivity:

• USB ports: 2 × USB 3.0 + 1 × USB Type‑C
• HD Audio jacks included

Extras:

• Integrated customizable display panel for dynamic visuals and real-time monitoring
• “Mortise and Tenon” quick-release structure for fast disassembly (≈3 seconds)
• Efficient cooling design using side suction and top exhaust airflow layout
• Magnetic dust filters and top dust-resistant panel (0.1 cm aperture)
• Bottom‑mounted PSU support (up to 200 mm length)

Why Choose the SP7 Emotion View?

• Eye-Catching Design: Its integrated display and extensive tempered glass surfaces make for a captivating showcase build.

• Flexible Cooling: With room for up to 9 fans and multiple radiator placements, it’s built to handle intense thermal loads.

• High Expandability: Supports large GPUs (vertical 400 mm) and tall CPU coolers, plus vertical PCI slot options.

• Smart Build Convenience: Features like the quick-release panels, magnetic dust filters, and generous I/O make it build-friendly.

• Bold and Functional: Whether you’re focused on aesthetics, performance, or both, this mid-tower ticks all the boxes.
